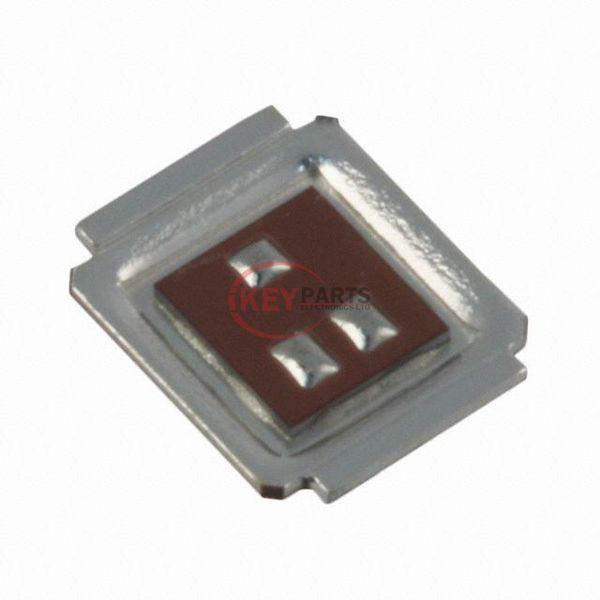

IRF6603

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRF6603

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRF6603
Description
MOSFET N-CH 30V 27A DIRECTFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF6603 PDF
In Stock
565
IRF6603 Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C27A (Ta), 92A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs72 nC @ 4.5 V
Vgs (Max)+20V, -12V
Input Capacitance (Ciss) (Max) @ Vds6590 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 42W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ MT
Package / CaseDirectFET™ Isometric MT
Request Quote Now
Request Quote Now

We can supply IRF6603, use the request quote form to request IRF6603 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF6603. The price and lead time for IRF6603 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF6603. We look forward to working with you to establish long-term relations of cooperation.
