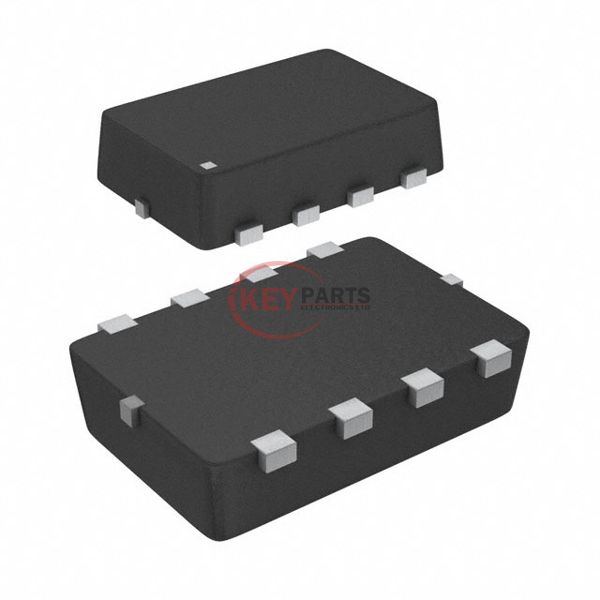

AON7400AL_103

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON7400AL_103

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON7400AL_103
Description
MOSFET N-CH 30V 15A/40A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON7400AL_103 PDF
In Stock
385
AON7400AL_103 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C15A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1380 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 25W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (3x3)
Package / Case8-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply AON7400AL_103, use the request quote form to request AON7400AL_103 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON7400AL_103. The price and lead time for AON7400AL_103 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON7400AL_103. We look forward to working with you to establish long-term relations of cooperation.
