STSJ50NH3LL

Enlarger

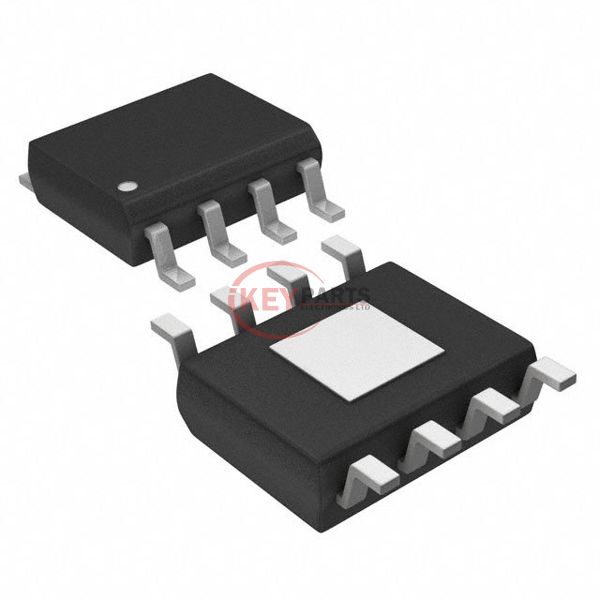

Lmages are for reference only See Product Specitications

STMicroelectronics STSJ50NH3LL

Manufacturer :
STMicroelectronics
Mfr. Part # :
STSJ50NH3LL
Description
MOSFET N-CH 30V 50A 8SOIC
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STSJ50NH3LL PDF
In Stock
543
STSJ50NH3LL Tech Specifications
SeriesSTripFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs10.5mOhm @ 6A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 4.5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds965 pF @ 25 V
FET Feature-
Power Dissipation (Max)3W (Ta), 50W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOIC
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Request Quote Now
Request Quote Now

We can supply STSJ50NH3LL, use the request quote form to request STSJ50NH3LL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STSJ50NH3LL. The price and lead time for STSJ50NH3LL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STSJ50NH3LL. We look forward to working with you to establish long-term relations of cooperation.
