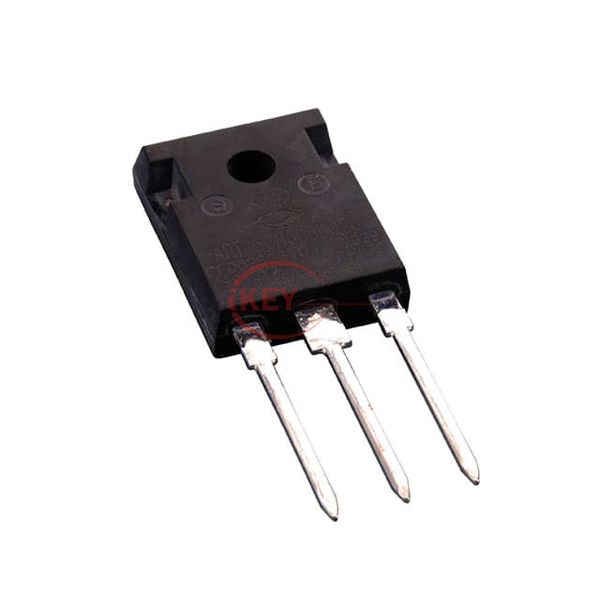

APT75GN60BDQ2G

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT75GN60BDQ2G

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT75GN60BDQ2G
Description
IGBT FIELDSTOP SINGLE 600V 75A T
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT75GN60BDQ2G PDF
APT75GN60BDQ2G Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)155 A
Current - Collector Pulsed (Icm)225 A
Vce(on) (Max) @ Vge, Ic1.85V @ 15V, 75A
Power - Max536 W
Switching Energy2.5mJ (on), 2.14mJ (off)
Input TypeStandard
Gate Charge485 nC
Td (on/off) @ 25°C47ns/385ns
Test Condition400V, 75A, 1Ohm, 15V
Reverse Recovery Time (trr)25 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply APT75GN60BDQ2G, use the request quote form to request APT75GN60BDQ2G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT75GN60BDQ2G. The price and lead time for APT75GN60BDQ2G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT75GN60BDQ2G. We look forward to working with you to establish long-term relations of cooperation.
