SGL160N60UFDTU

Enlarger

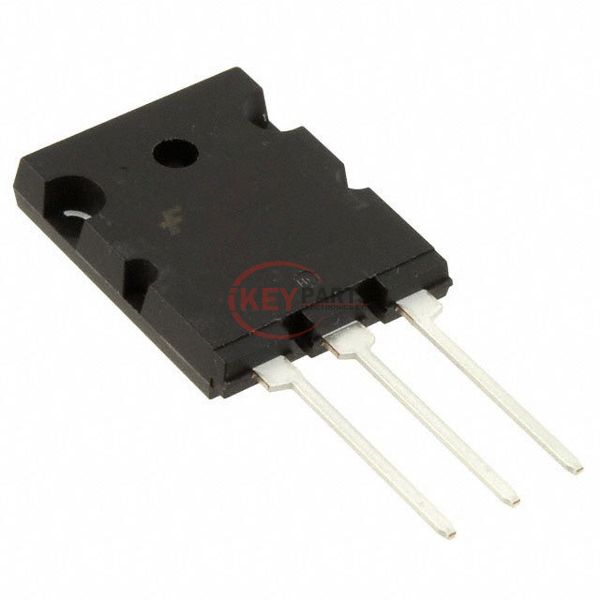

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor SGL160N60UFDTU

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
SGL160N60UFDTU
Description
IGBT 600V 160A 250W TO264
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SGL160N60UFDTU PDF
SGL160N60UFDTU Tech Specifications
Series-
PackageTube
Part StatusNot For New Designs
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)300 A
Vce(on) (Max) @ Vge, Ic2.6V @ 15V, 80A
Power - Max250 W
Switching Energy2.5mJ (on), 1.76mJ (off)
Input TypeStandard
Gate Charge345 nC
Td (on/off) @ 25°C40ns/90ns
Test Condition300V, 80A, 3.9Ohm, 15V
Reverse Recovery Time (trr)95 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264-3
Request Quote Now
Request Quote Now

We can supply SGL160N60UFDTU, use the request quote form to request SGL160N60UFDTU pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SGL160N60UFDTU. The price and lead time for SGL160N60UFDTU depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SGL160N60UFDTU. We look forward to working with you to establish long-term relations of cooperation.
