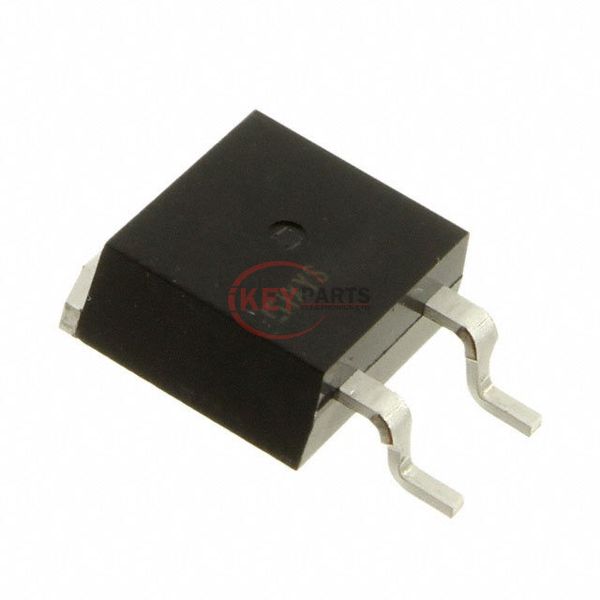

IXBH10N300HV

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXBH10N300HV

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXBH10N300HV
Description
IGBT 3000V 20A 140W TO247AD
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXBH10N300HV PDF
In Stock
841
IXBH10N300HV Tech Specifications
SeriesBIMOSFET™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3000 V
Current - Collector (Ic) (Max)34 A
Current - Collector Pulsed (Icm)88 A
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 10A
Power - Max180 W
Switching Energy-
Input TypeStandard
Gate Charge46 nC
Td (on/off) @ 25°C36ns/100ns
Test Condition960V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)1.6 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageTO-263
Request Quote Now
Request Quote Now

We can supply IXBH10N300HV, use the request quote form to request IXBH10N300HV pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXBH10N300HV. The price and lead time for IXBH10N300HV depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXBH10N300HV. We look forward to working with you to establish long-term relations of cooperation.
