IXYH50N65C3D1

Enlarger

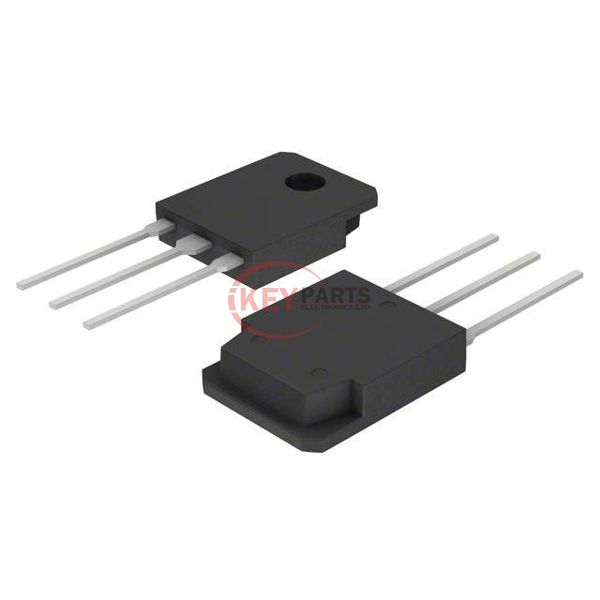

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXYH50N65C3D1

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXYH50N65C3D1
Description
IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXYH50N65C3D1 PDF
IXYH50N65C3D1 Tech Specifications
SeriesXPT™, GenX3™
PackageTube
Part StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)132 A
Current - Collector Pulsed (Icm)250 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 36A
Power - Max600 W
Switching Energy800µJ (on), 800µJ (off)
Input TypeStandard
Gate Charge86 nC
Td (on/off) @ 25°C20ns/90ns
Test Condition400V, 36A, 5Ohm, 15V
Reverse Recovery Time (trr)36 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
Request Quote Now
Request Quote Now

We can supply IXYH50N65C3D1, use the request quote form to request IXYH50N65C3D1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXYH50N65C3D1. The price and lead time for IXYH50N65C3D1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXYH50N65C3D1. We look forward to working with you to establish long-term relations of cooperation.
