RGS80TSX2DHRC11

Enlarger

Lmages are for reference only See Product Specitications

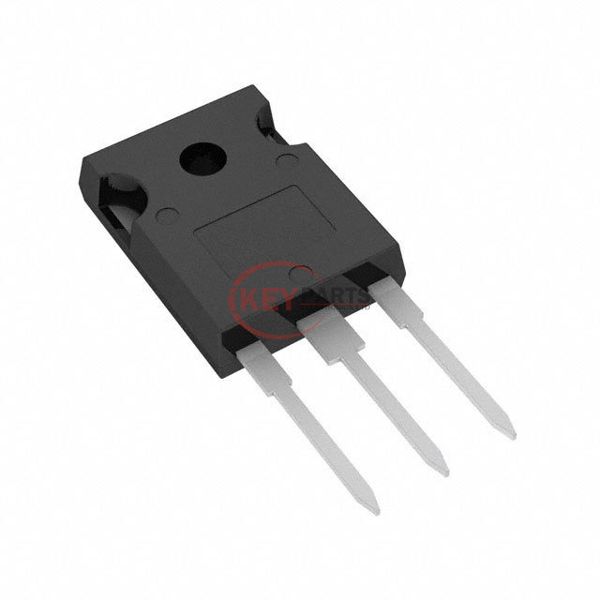

ROHM Semiconductor RGS80TSX2DHRC11

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RGS80TSX2DHRC11
Description
1200V 40A FIELD STOP TRENCH IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RGS80TSX2DHRC11 PDF
RGS80TSX2DHRC11 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)80 A
Current - Collector Pulsed (Icm)120 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 40A
Power - Max555 W
Switching Energy3mJ (on), 3.1mJ (off)
Input TypeStandard
Gate Charge104 nC
Td (on/off) @ 25°C49ns/199ns
Test Condition600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)198 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247N
Request Quote Now
Request Quote Now

We can supply RGS80TSX2DHRC11, use the request quote form to request RGS80TSX2DHRC11 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RGS80TSX2DHRC11. The price and lead time for RGS80TSX2DHRC11 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RGS80TSX2DHRC11. We look forward to working with you to establish long-term relations of cooperation.
