IXBF12N300

Enlarger

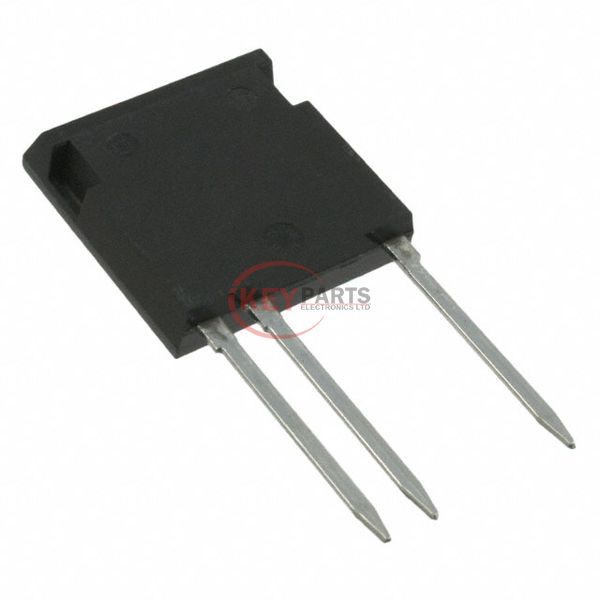

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXBF12N300

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXBF12N300
Description
IGBT 3000V 26A 125W ISOPLUSI4
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXBF12N300 PDF
IXBF12N300 Tech Specifications
SeriesBIMOSFET™
PackageTube
Part StatusNot For New Designs
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3000 V
Current - Collector (Ic) (Max)26 A
Current - Collector Pulsed (Icm)98 A
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 12A
Power - Max125 W
Switching Energy-
Input TypeStandard
Gate Charge62 nC
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)1.4 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Casei4-Pac™-5 (3 Leads)
Supplier Device PackageISOPLUS i4-PAC™
Request Quote Now
Request Quote Now

We can supply IXBF12N300, use the request quote form to request IXBF12N300 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXBF12N300. The price and lead time for IXBF12N300 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXBF12N300. We look forward to working with you to establish long-term relations of cooperation.
