29SM-K138-99V

Enlarger

Lmages are for reference only See Product Specitications

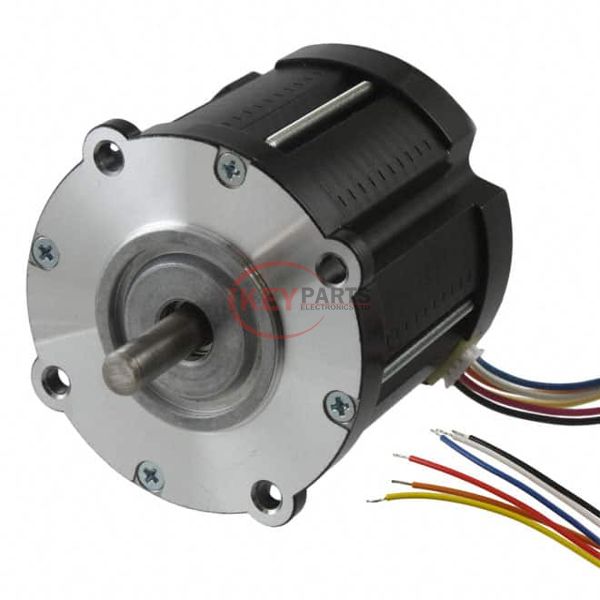

NMB Technologies Corp. 29SM-K138-99V

Manufacturer :
NMB Technologies Corp.
Mfr. Part # :
29SM-K138-99V
Description
STEP MOTOR HYBRID DUAL SHAFT 24V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
29SM-K138-99V PDF
29SM-K138-99V Tech Specifications
Series29SM
PackageBulk
Part StatusActive
TypeHybrid, Dual Shaft
Coil TypeUnipolar
Voltage - Rated24VDC
Current Rating (Amps)2.6 A
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)169.96 / 1200
Size / DimensionRound - 2.795" Dia (71.00mm)
NEMA Frame Size-
Diameter - Shaft0.315" (8.00mm)
Length - Shaft and Bearing0.984" (25.00mm)
Mounting Hole Spacing1.856" (47.14mm)
Termination StyleWire Leads
Operating Temperature-10°C ~ 50°C
Coil Resistance1.25 Ohms
FeaturesRound Shaft
Request Quote Now
Request Quote Now

We can supply 29SM-K138-99V, use the request quote form to request 29SM-K138-99V pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 29SM-K138-99V. The price and lead time for 29SM-K138-99V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 29SM-K138-99V. We look forward to working with you to establish long-term relations of cooperation.
