PD28-1-1021-TMCL

Enlarger

Lmages are for reference only See Product Specitications

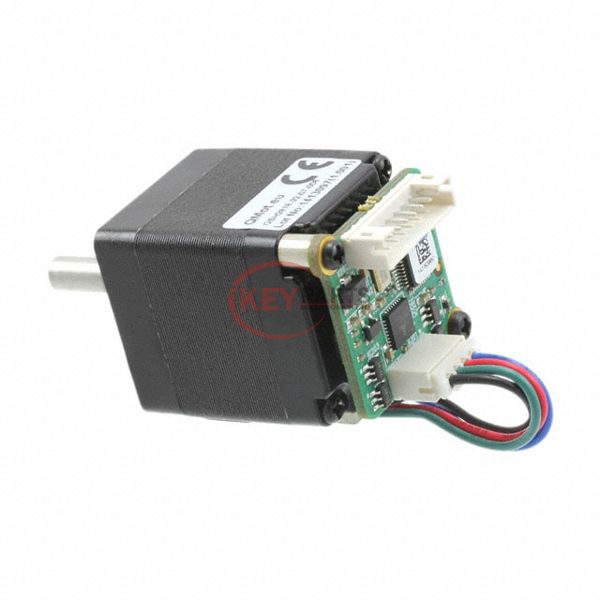

TRINAMIC Motion Control GmbH PD28-1-1021-TMCL

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
PD28-1-1021-TMCL
Description
STEPPER MOTOR HYBRID BIPOLAR 24V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PD28-1-1021-TMCL PDF
In Stock
792
PD28-1-1021-TMCL Tech Specifications
SeriesPANdrive™
PackageBox
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)700 mA
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)8.49 / 60
Size / DimensionSquare - 1.100" x 1.100" (28.00mm x 28.00mm)
NEMA Frame Size11
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.787" (20.00mm)
Mounting Hole Spacing0.906" (23.00mm)
Termination StyleWire Leads with Connector
Operating Temperature-
Coil Resistance-
FeaturesIntegrated Controller, Flatted Shaft
Request Quote Now
Request Quote Now

We can supply PD28-1-1021-TMCL, use the request quote form to request PD28-1-1021-TMCL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD28-1-1021-TMCL. The price and lead time for PD28-1-1021-TMCL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD28-1-1021-TMCL. We look forward to working with you to establish long-term relations of cooperation.
