SF2421-10B11

Enlarger

Lmages are for reference only See Product Specitications

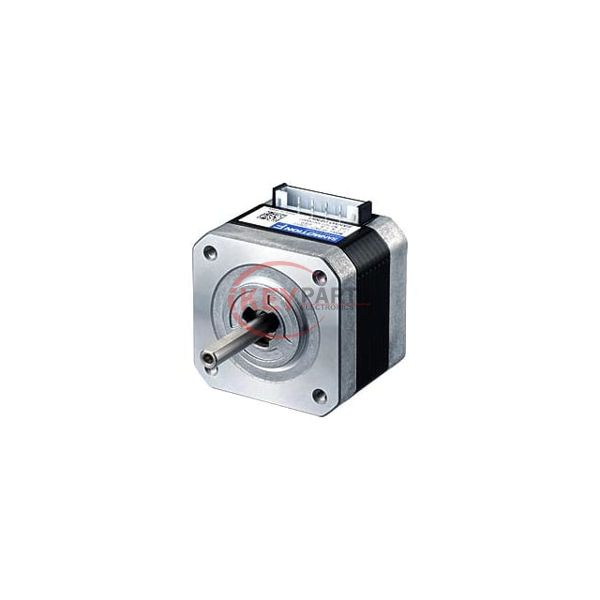

Sanyo Denki SanMotion Products SF2421-10B11

Manufacturer :
Sanyo Denki SanMotion Products
Mfr. Part # :
SF2421-10B11
Description
STEP, F2, SQ.42, 1.8, , , BIPOLA
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SF2421-10B11 PDF
SF2421-10B11 Tech Specifications
SeriesSF
PackageBox
Part StatusActive
TypeHybrid, Dual Shaft
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)1 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)41.07 / 290
Size / DimensionSquare - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size-
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.220" (31.00mm)
Termination StyleConnector
Operating Temperature-10°C ~ 50°C
Coil Resistance3.6 Ohms
Features-
Request Quote Now
Request Quote Now

We can supply SF2421-10B11, use the request quote form to request SF2421-10B11 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SF2421-10B11. The price and lead time for SF2421-10B11 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SF2421-10B11. We look forward to working with you to establish long-term relations of cooperation.
