PG15S-D20-HHB9

Enlarger

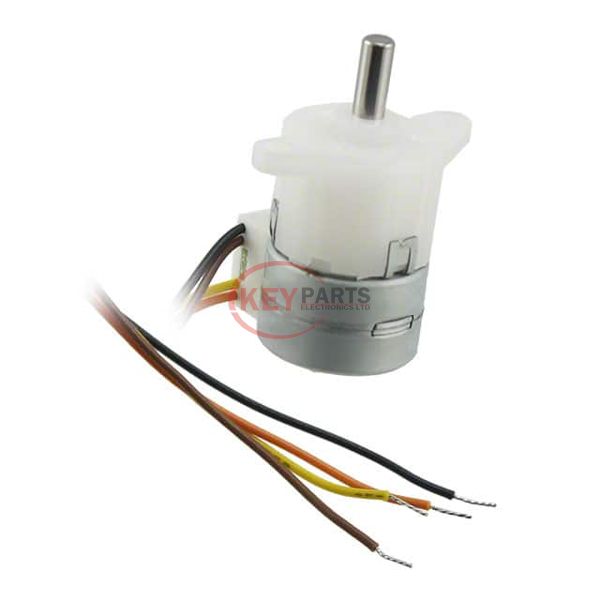

Lmages are for reference only See Product Specitications

NMB Technologies Corp. PG15S-D20-HHB9

Manufacturer :
NMB Technologies Corp.
Mfr. Part # :
PG15S-D20-HHB9
Description
STEP MOTOR PM GEARED BIPOLAR 15V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PG15S-D20-HHB9 PDF
PG15S-D20-HHB9 Tech Specifications
SeriesPG
PackageBulk
Part StatusActive
TypePermanent Magnet Gear Motor
Coil TypeBipolar
Voltage - Rated15VDC
Current Rating (Amps)100 mA
Steps per Revolution2048
Step Angle0.176°
Accuracy-
Torque - Holding (oz-in / mNm)21.2 / 150
Size / DimensionRound - 0.591" Dia (15.00mm)
NEMA Frame Size-
Diameter - Shaft0.118" (3.00mm)
Length - Shaft and Bearing0.354" (9.00mm)
Mounting Hole Spacing0.787" (20.00mm)
Termination StyleWire Leads
Operating Temperature-
Coil Resistance10 Ohms
FeaturesRound Shaft
Request Quote Now
Request Quote Now

We can supply PG15S-D20-HHB9, use the request quote form to request PG15S-D20-HHB9 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PG15S-D20-HHB9. The price and lead time for PG15S-D20-HHB9 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PG15S-D20-HHB9. We look forward to working with you to establish long-term relations of cooperation.
