QSH4218-47-28-040

Enlarger

Lmages are for reference only See Product Specitications

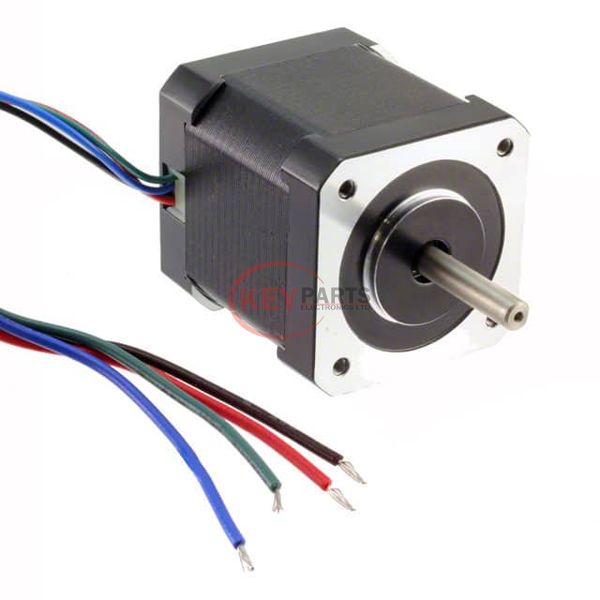

TRINAMIC Motion Control GmbH QSH4218-47-28-040

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
QSH4218-47-28-040
Description
STEP MOTOR HYBRID BIPOLAR 1.4V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
QSH4218-47-28-040 PDF
QSH4218-47-28-040 Tech Specifications
SeriesQMot QSH4218
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated1.4VDC
Current Rating (Amps)2.81 A
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)56.3 / 400
Size / DimensionSquare - 1.665" x 1.665" (42.30mm x 42.30mm)
NEMA Frame Size17
Diameter - Shaft0.197" (5.00mm)
Length - Shaft and Bearing0.945" (24.00mm)
Mounting Hole Spacing1.220" (30.99mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 50°C
Coil Resistance1.5 Ohms
FeaturesFlatted Shaft
Request Quote Now
Request Quote Now

We can supply QSH4218-47-28-040, use the request quote form to request QSH4218-47-28-040 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number QSH4218-47-28-040. The price and lead time for QSH4218-47-28-040 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# QSH4218-47-28-040. We look forward to working with you to establish long-term relations of cooperation.
