42M100B2U

Enlarger

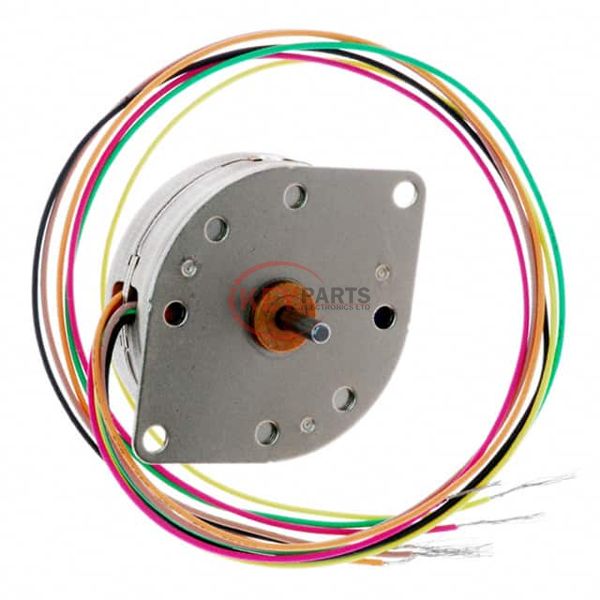

Lmages are for reference only See Product Specitications

Portescap 42M100B2U

Manufacturer :
Portescap
Mfr. Part # :
42M100B2U
Description
STEPPER MOTOR PM UNIPOLAR 12V
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
42M100B2U PDF
42M100B2U Tech Specifications
Series42M
PackageBulk
Part StatusActive
TypePermanent Magnet
Coil TypeUnipolar
Voltage - Rated12VDC
Current Rating (Amps)160 mA
Steps per Revolution100
Step Angle3.6°
Accuracy±11%
Torque - Holding (oz-in / mNm)6.4 / 45.2
Size / DimensionRound - 1.650" Dia (42.00mm)
NEMA Frame Size-
Diameter - Shaft0.118" (3.00mm)
Length - Shaft and Bearing0.450" (11.43mm)
Mounting Hole Spacing1.950" (49.48mm)
Termination StyleWire Leads
Operating Temperature-20°C ~ 70°C
Coil Resistance75 Ohms
FeaturesRound Shaft
Request Quote Now
Request Quote Now

We can supply 42M100B2U, use the request quote form to request 42M100B2U pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 42M100B2U. The price and lead time for 42M100B2U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 42M100B2U. We look forward to working with you to establish long-term relations of cooperation.
