PD42-3-1270-TMCL

Enlarger

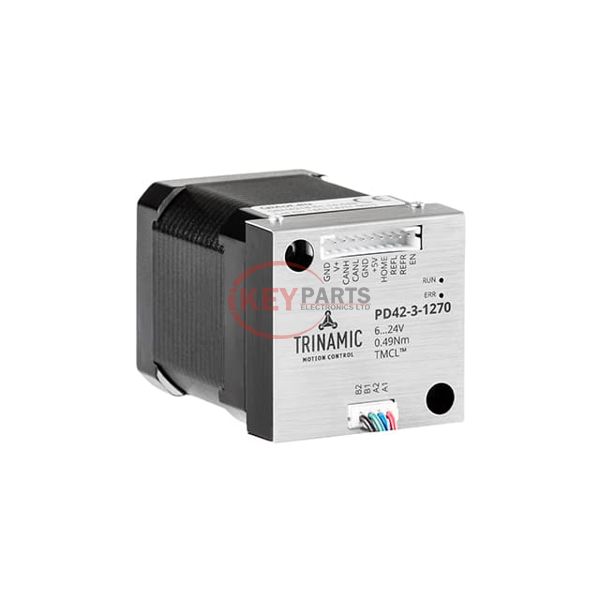

Lmages are for reference only See Product Specitications

TRINAMIC Motion Control GmbH PD42-3-1270-TMCL

Manufacturer :
TRINAMIC Motion Control GmbH
Mfr. Part # :
PD42-3-1270-TMCL
Description
PANDRIVE NEMA17, 24V, 69 OZ IN/
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PD42-3-1270-TMCL PDF
PD42-3-1270-TMCL Tech Specifications
SeriesPANdrive™
PackageBulk
Part StatusActive
TypeHybrid
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)1 A
Steps per Revolution200
Step Angle1.8°
Accuracy±5%
Torque - Holding (oz-in / mNm)62.3 / 440
Size / DimensionSquare - 1.654" x 1.654" (42.00mm x 42.00mm)
NEMA Frame Size17
Diameter - Shaft-
Length - Shaft and Bearing-
Mounting Hole Spacing1.220" (31.00mm)
Termination StyleConnector
Operating Temperature-20°C ~ 50°C
Coil Resistance1.4 Ohms
FeaturesIntegrated Controller, Round Shaft
Request Quote Now
Request Quote Now

We can supply PD42-3-1270-TMCL, use the request quote form to request PD42-3-1270-TMCL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PD42-3-1270-TMCL. The price and lead time for PD42-3-1270-TMCL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PD42-3-1270-TMCL. We look forward to working with you to establish long-term relations of cooperation.
