SH2862-52XB12

Enlarger

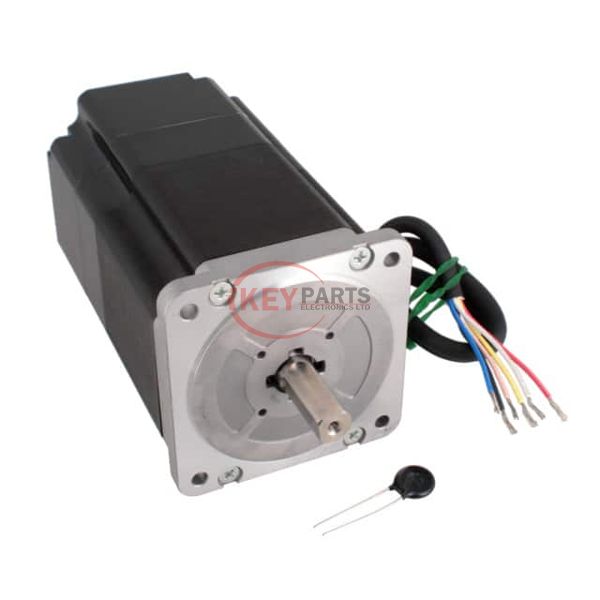

Lmages are for reference only See Product Specitications

Sanyo Denki SanMotion Products SH2862-52XB12

Manufacturer :
Sanyo Denki SanMotion Products
Mfr. Part # :
SH2862-52XB12
Description
STEP, F2 MOTOR, SQ.86, 2 PHASE S
Catalog
Stepper Motors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SH2862-52XB12 PDF
SH2862-52XB12 Tech Specifications
Series-
PackageBox
Part StatusActive
TypeHybrid, Dual Shaft
Coil TypeBipolar
Voltage - Rated24VDC
Current Rating (Amps)6 A
Steps per Revolution200
Step Angle1.8°
Accuracy-
Torque - Holding (oz-in / mNm)906.3 / 6400
Size / DimensionSquare - 3.386" x 3.386" (86.00mm x 86.00mm)
NEMA Frame Size34
Diameter - Shaft0.500" (12.70mm)
Length - Shaft and Bearing1.181" (30.00mm)
Mounting Hole Spacing2.740" (69.60mm)
Termination StyleWire Leads
Operating Temperature-10°C ~ 50°C
Coil Resistance0.36 Ohms
Features-
Request Quote Now
Request Quote Now

We can supply SH2862-52XB12, use the request quote form to request SH2862-52XB12 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SH2862-52XB12. The price and lead time for SH2862-52XB12 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SH2862-52XB12. We look forward to working with you to establish long-term relations of cooperation.
