STGD5NB120SZT4

Enlarger

Lmages are for reference only See Product Specitications

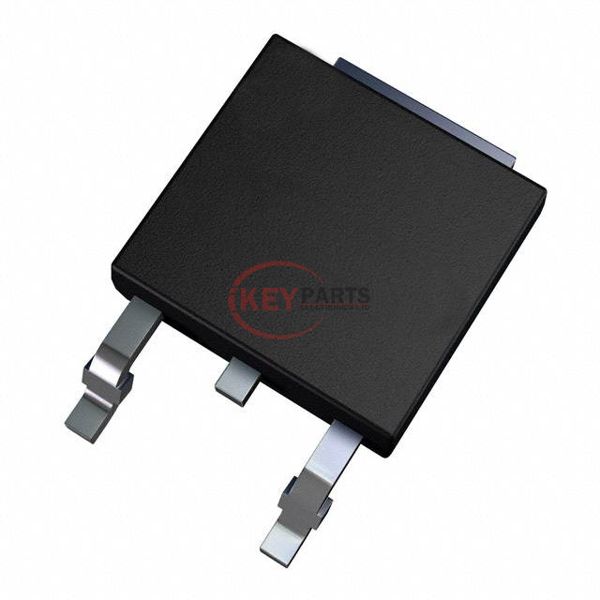

STMicroelectronics STGD5NB120SZT4

Manufacturer :
STMicroelectronics
Mfr. Part # :
STGD5NB120SZT4
Description
IGBT 1200V 10A 75W DPAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STGD5NB120SZT4 PDF
STGD5NB120SZT4 Tech Specifications
SeriesPowerMESH™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)10 A
Current - Collector Pulsed (Icm)10 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 5A
Power - Max75 W
Switching Energy2.59mJ (on), 9mJ (off)
Input TypeStandard
Gate Charge-
Td (on/off) @ 25°C690ns/12.1µs
Test Condition960V, 5A, 1kOhm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageDPAK
Request Quote Now
Request Quote Now
