FGPF4536

Enlarger

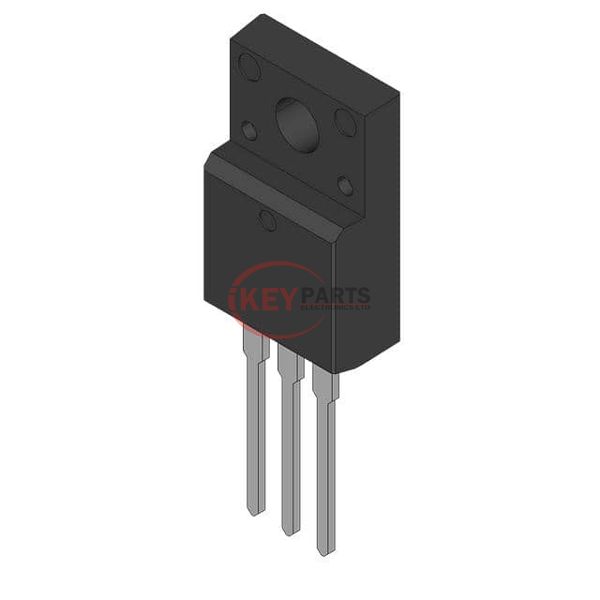

Lmages are for reference only See Product Specitications

Rochester Electronics FGPF4536

Manufacturer :
Rochester Electronics
Mfr. Part # :
FGPF4536
Description
INSULATED GATE BIPOLAR TRANSISTO
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGPF4536 PDF
FGPF4536 Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT TypeTrench
Voltage - Collector Emitter Breakdown (Max)360 V
Current - Collector (Ic) (Max)-
Current - Collector Pulsed (Icm)220 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 50A
Power - Max28.4 W
Switching Energy-
Input TypeStandard
Gate Charge47 nC
Td (on/off) @ 25°C-
Test Condition-
Reverse Recovery Time (trr)-
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F
Request Quote Now
Request Quote Now

We can supply FGPF4536, use the request quote form to request FGPF4536 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGPF4536. The price and lead time for FGPF4536 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGPF4536. We look forward to working with you to establish long-term relations of cooperation.
