RGW80TS65DGC11

Enlarger

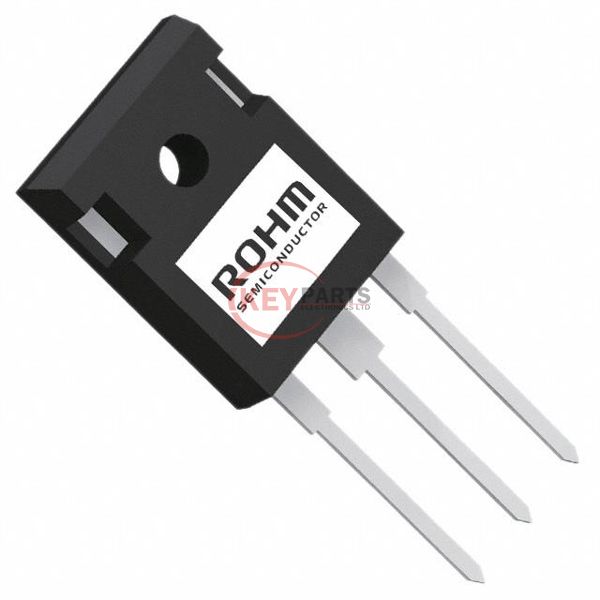

Lmages are for reference only See Product Specitications

ROHM Semiconductor RGW80TS65DGC11

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RGW80TS65DGC11
Description
650V 40A FIELD STOP TRENCH IGBT
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RGW80TS65DGC11 PDF
RGW80TS65DGC11 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)78 A
Current - Collector Pulsed (Icm)160 A
Vce(on) (Max) @ Vge, Ic1.9V @ 15V, 40A
Power - Max214 W
Switching Energy760µJ (on), 720µJ (off)
Input TypeStandard
Gate Charge110 nC
Td (on/off) @ 25°C44ns/143ns
Test Condition400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)92 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247N
Request Quote Now
Request Quote Now

We can supply RGW80TS65DGC11, use the request quote form to request RGW80TS65DGC11 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RGW80TS65DGC11. The price and lead time for RGW80TS65DGC11 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RGW80TS65DGC11. We look forward to working with you to establish long-term relations of cooperation.
