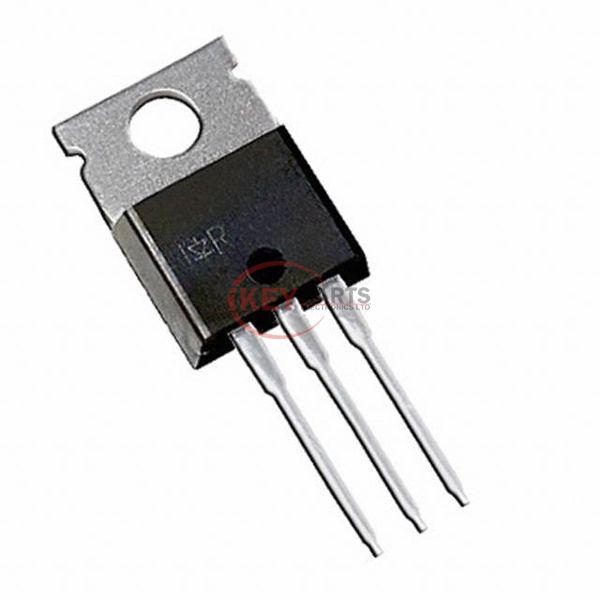

AIKP20N60CTAKSA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) AIKP20N60CTAKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
AIKP20N60CTAKSA1
Description
IC DISCRETE 600V TO220-3
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AIKP20N60CTAKSA1 PDF
In Stock
567
AIKP20N60CTAKSA1 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)60 A
Vce(on) (Max) @ Vge, Ic2.05V @ 15V, 20A
Power - Max156 W
Switching Energy310µJ (on), 460µJ (off)
Input TypeStandard
Gate Charge120 nC
Td (on/off) @ 25°C18ns/199ns
Test Condition400V, 20A, 12Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackagePG-TO220-3-1
Request Quote Now
Request Quote Now

We can supply AIKP20N60CTAKSA1, use the request quote form to request AIKP20N60CTAKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AIKP20N60CTAKSA1. The price and lead time for AIKP20N60CTAKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AIKP20N60CTAKSA1. We look forward to working with you to establish long-term relations of cooperation.
