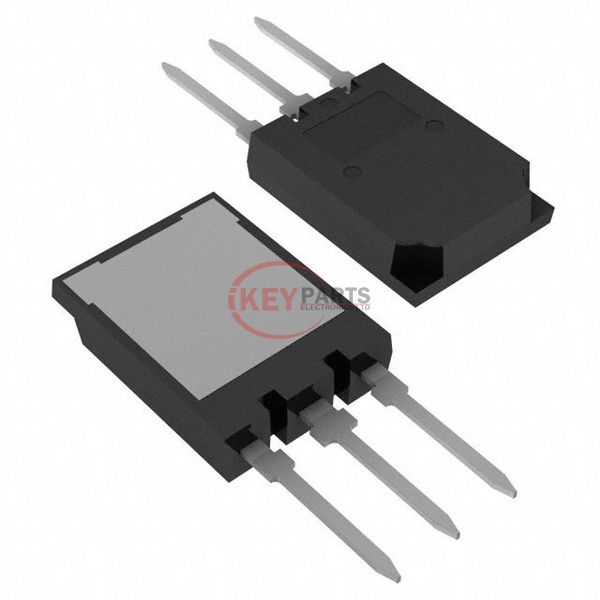

AIKQ120N60CTXKSA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) AIKQ120N60CTXKSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
AIKQ120N60CTXKSA1
Description
IGBT TRENCH/FS 600V 160A TO247-3
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AIKQ120N60CTXKSA1 PDF
AIKQ120N60CTXKSA1 Tech Specifications
SeriesAutomotive, AEC-Q101, TrenchStop™
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)160 A
Current - Collector Pulsed (Icm)480 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 120A
Power - Max833 W
Switching Energy4.1mJ (on), 2.8mJ (off)
Input TypeStandard
Gate Charge772 nC
Td (on/off) @ 25°C33ns/310ns
Test Condition400V, 120A, 3Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackagePG-TO247-3-46
Request Quote Now
Request Quote Now

We can supply AIKQ120N60CTXKSA1, use the request quote form to request AIKQ120N60CTXKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AIKQ120N60CTXKSA1. The price and lead time for AIKQ120N60CTXKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AIKQ120N60CTXKSA1. We look forward to working with you to establish long-term relations of cooperation.
