FGA60N65SMD

Enlarger

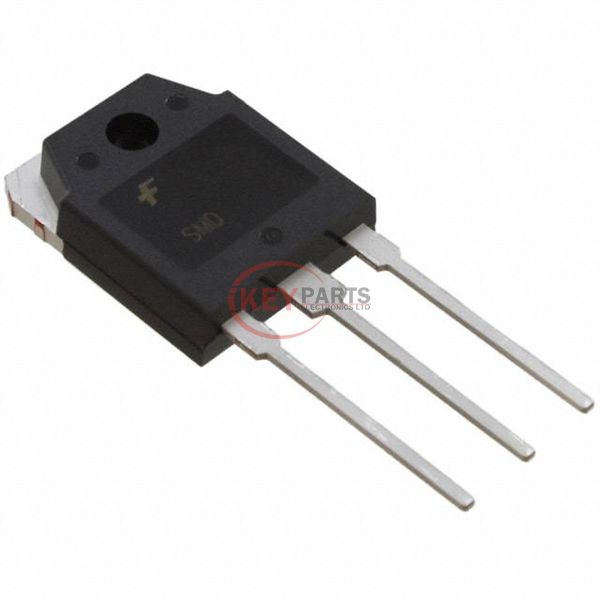

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FGA60N65SMD

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FGA60N65SMD
Description
IGBT FIELD STOP 650V 120A TO3P
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FGA60N65SMD PDF
FGA60N65SMD Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)120 A
Current - Collector Pulsed (Icm)180 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 60A
Power - Max600 W
Switching Energy1.54mJ (on), 450µJ (off)
Input TypeStandard
Gate Charge189 nC
Td (on/off) @ 25°C18ns/104ns
Test Condition400V, 60A, 3Ohm, 15V
Reverse Recovery Time (trr)47 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply FGA60N65SMD, use the request quote form to request FGA60N65SMD pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FGA60N65SMD. The price and lead time for FGA60N65SMD depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FGA60N65SMD. We look forward to working with you to establish long-term relations of cooperation.
