Series | TrenchStop™ 5 | |
Package | Tube | |
Part Status | Active | |
IGBT Type | - | |
Voltage - Collector Emitter Breakdown (Max) | 650 V | |
Current - Collector (Ic) (Max) | 100 A | |
Current - Collector Pulsed (Icm) | 300 A | |
Vce(on) (Max) @ Vge, Ic | 1.35V @ 15V, 75A | |
Power - Max | 536 W | |
Switching Energy | 1.57mJ (on), 3.2mJ (off) | |
Input Type | Standard | |
Gate Charge | 436 nC | |
Td (on/off) @ 25°C | 120ns/275ns | |
Test Condition | 400V, 75A, 23Ohm, 15V | |
Reverse Recovery Time (trr) | 59 ns | |
Operating Temperature | -40°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

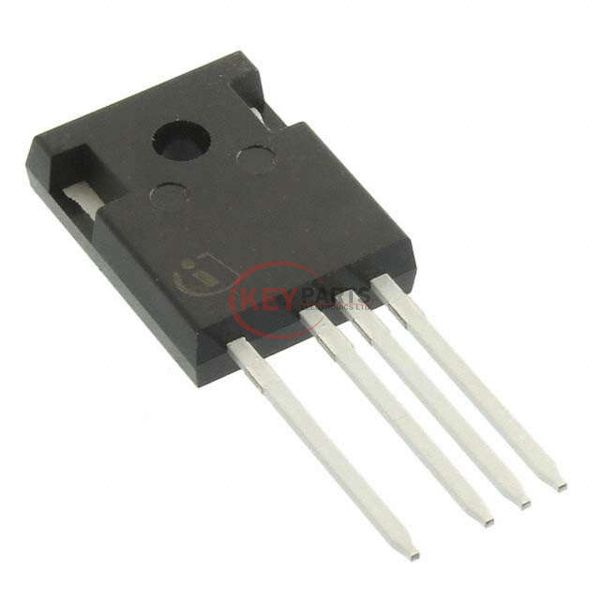

Package / Case | TO-247-4 | |
Supplier Device Package | PG-TO247-4 |
We can supply IKZ75N65EL5XKSA1, use the request quote form to request IKZ75N65EL5XKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IKZ75N65EL5XKSA1. The price and lead time for IKZ75N65EL5XKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IKZ75N65EL5XKSA1. We look forward to working with you to establish long-term relations of cooperation.
![]() |
