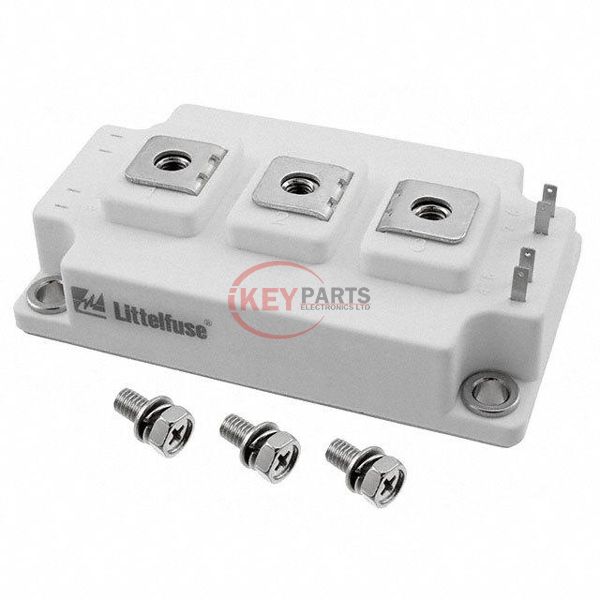

MG12300D-BN3MM

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse MG12300D-BN3MM

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
MG12300D-BN3MM
Description
IGBT MODULE 1200V 450A 1450W D3
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MG12300D-BN3MM PDF
MG12300D-BN3MM Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)450 A
Power - Max1450 W
Vce(on) (Max) @ Vge, Ic3.2V @ 15V, 300A
Current - Collector Cutoff (Max)2 mA
Input Capacitance (Cies) @ Vce22 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
Request Quote Now
Request Quote Now

We can supply MG12300D-BN3MM, use the request quote form to request MG12300D-BN3MM pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MG12300D-BN3MM. The price and lead time for MG12300D-BN3MM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MG12300D-BN3MM. We look forward to working with you to establish long-term relations of cooperation.
