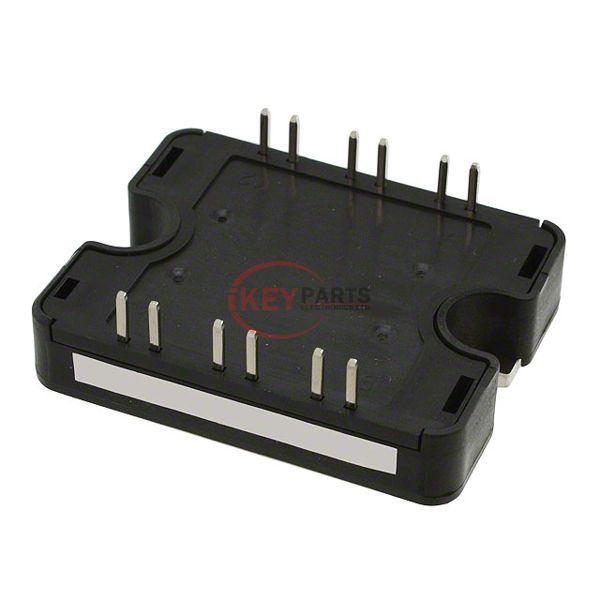

APTGF90A60T1G

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APTGF90A60T1G

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APTGF90A60T1G
Description
IGBT MODULE 600V 110A 416W SP1
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APTGF90A60T1G PDF
APTGF90A60T1G Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT TypeNPT
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)110 A
Power - Max416 W
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 90A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce4.3 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP1
Supplier Device PackageSP1
Request Quote Now
Request Quote Now

We can supply APTGF90A60T1G, use the request quote form to request APTGF90A60T1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGF90A60T1G. The price and lead time for APTGF90A60T1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGF90A60T1G. We look forward to working with you to establish long-term relations of cooperation.
