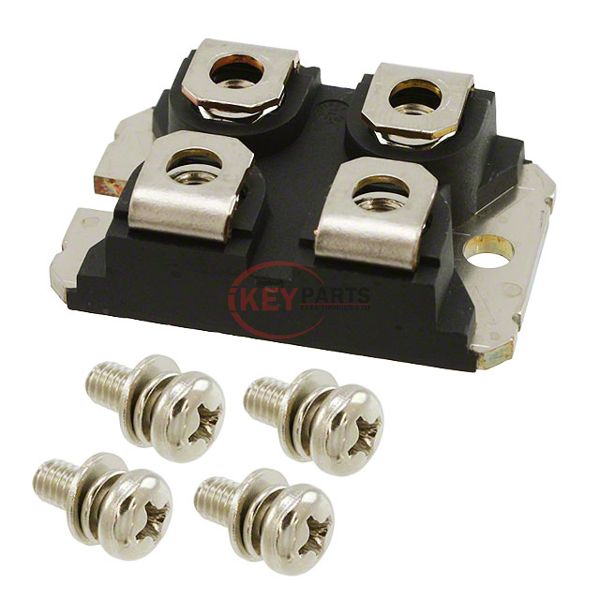

VS-GB90SA120U

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division VS-GB90SA120U

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
VS-GB90SA120U
Description
IGBT MOD 1200V 149A 862W SOT227
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
VS-GB90SA120U PDF
VS-GB90SA120U Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)149 A
Power - Max862 W
Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 75A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce-
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4
Supplier Device PackageSOT-227
Request Quote Now
Request Quote Now

We can supply VS-GB90SA120U, use the request quote form to request VS-GB90SA120U pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VS-GB90SA120U. The price and lead time for VS-GB90SA120U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VS-GB90SA120U. We look forward to working with you to establish long-term relations of cooperation.
