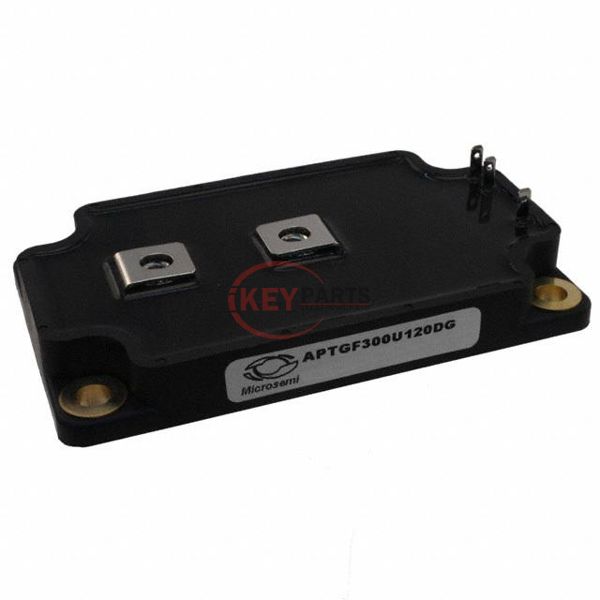

APTGF300U120DG

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APTGF300U120DG

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APTGF300U120DG
Description
IGBT MODULE 1200V 400A 1780W SP6
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APTGF300U120DG PDF
APTGF300U120DG Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)400 A
Power - Max1780 W
Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 300A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce21 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
Request Quote Now
Request Quote Now

We can supply APTGF300U120DG, use the request quote form to request APTGF300U120DG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGF300U120DG. The price and lead time for APTGF300U120DG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGF300U120DG. We look forward to working with you to establish long-term relations of cooperation.
