Series | - | |
Package | Tube | |
Part Status | Obsolete | |
IGBT Type | Trench Field Stop | |
Configuration | Single | |
Voltage - Collector Emitter Breakdown (Max) | 1200 V | |
Current - Collector (Ic) (Max) | 124 A | |
Power - Max | 379 W | |
Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | |
Current - Collector Cutoff (Max) | 100 µA | |
Input Capacitance (Cies) @ Vce | 4.8 nF @ 25 V | |
Input | Standard | |
NTC Thermistor | No | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |

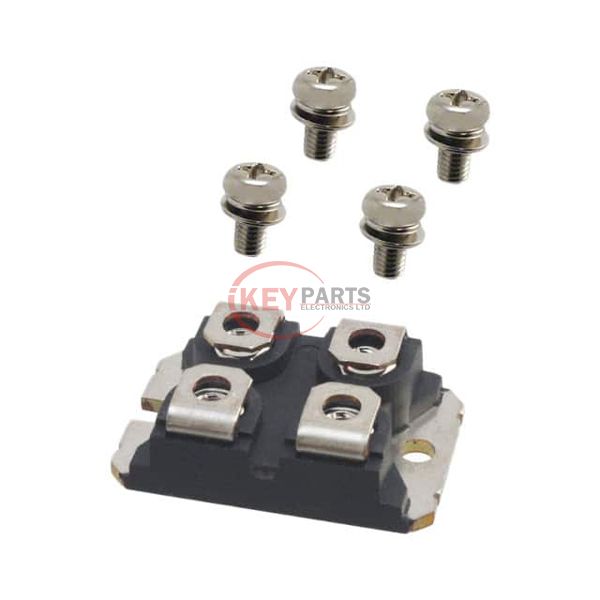

Package / Case | ISOTOP | |
Supplier Device Package | ISOTOP® |
We can supply APT75GN120J, use the request quote form to request APT75GN120J pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT75GN120J. The price and lead time for APT75GN120J depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT75GN120J. We look forward to working with you to establish long-term relations of cooperation.
![]() |
