APTGF75H120TG

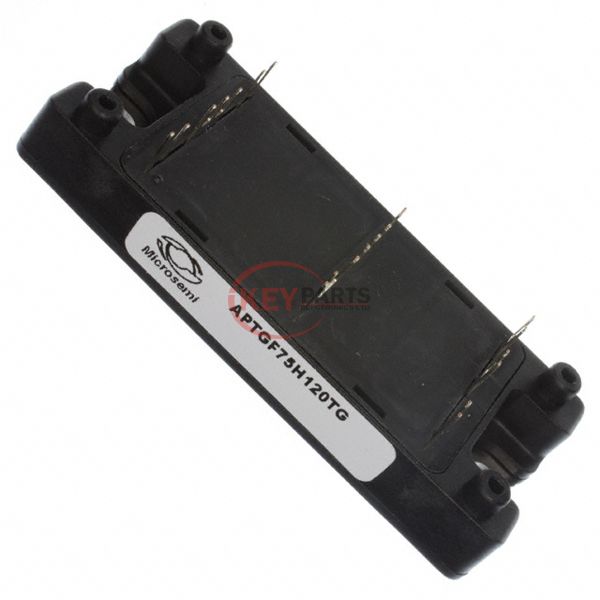

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APTGF75H120TG

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APTGF75H120TG
Description
IGBT MODULE 1200V 100A 500W SP4
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APTGF75H120TG PDF
APTGF75H120TG Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT TypeNPT
ConfigurationFull Bridge Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)100 A
Power - Max500 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 75A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce5.1 nF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseSP4
Supplier Device PackageSP4
Request Quote Now
Request Quote Now

We can supply APTGF75H120TG, use the request quote form to request APTGF75H120TG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTGF75H120TG. The price and lead time for APTGF75H120TG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTGF75H120TG. We look forward to working with you to establish long-term relations of cooperation.
