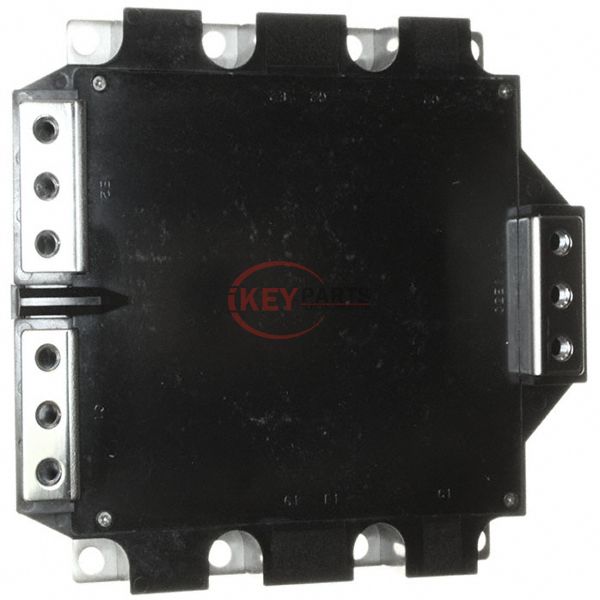

CM1000DU-34NF

Enlarger

Lmages are for reference only See Product Specitications

Powerex, Inc. CM1000DU-34NF

Manufacturer :
Powerex, Inc.
Mfr. Part # :
CM1000DU-34NF
Description
IGBT MOD 1700V 1000A 3900W
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CM1000DU-34NF PDF
In Stock
509
CM1000DU-34NF Tech Specifications
SeriesIGBTMOD™
PackageBulk
Part StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)1000 A
Power - Max3900 W
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 1000A
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce220 nF @ 10 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
Request Quote Now
Request Quote Now

We can supply CM1000DU-34NF, use the request quote form to request CM1000DU-34NF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CM1000DU-34NF. The price and lead time for CM1000DU-34NF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CM1000DU-34NF. We look forward to working with you to establish long-term relations of cooperation.
