Series | - | |
Package | Tube | |
Part Status | Obsolete | |
IGBT Type | NPT | |
Configuration | Single | |
Voltage - Collector Emitter Breakdown (Max) | 1200 V | |
Current - Collector (Ic) (Max) | 77 A | |
Power - Max | 347 W | |
Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 40A | |
Current - Collector Cutoff (Max) | 500 µA | |
Input Capacitance (Cies) @ Vce | 3.46 nF @ 25 V | |
Input | Standard | |
NTC Thermistor | No | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |

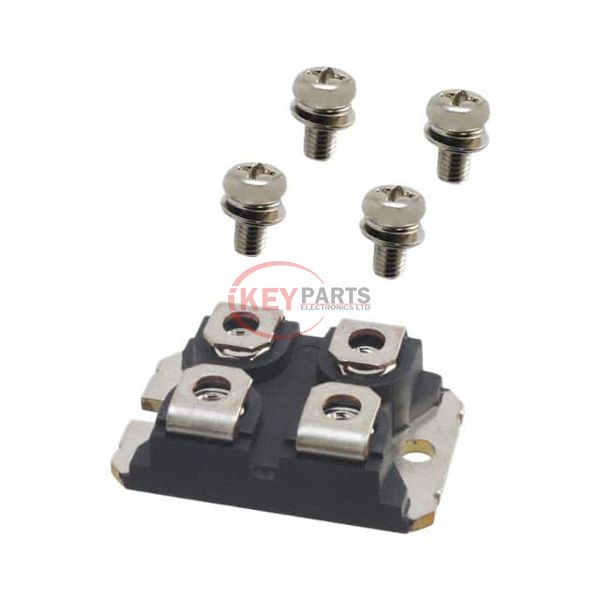

Package / Case | ISOTOP | |
Supplier Device Package | ISOTOP® |
We can supply APT40GF120JRDQ2, use the request quote form to request APT40GF120JRDQ2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT40GF120JRDQ2. The price and lead time for APT40GF120JRDQ2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT40GF120JRDQ2. We look forward to working with you to establish long-term relations of cooperation.
![]() |
