| Series | IGBTMOD™ | |
| Package | Bulk | |
| Part Status | Discontinued at Digi-Key | |
| IGBT Type | - | |
| Configuration | Three Phase Inverter with Brake | |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | |
| Current - Collector (Ic) (Max) | 150 A | |
| Power - Max | 1150 W | |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 150A | |
| Current - Collector Cutoff (Max) | 1 mA | |
| Input Capacitance (Cies) @ Vce | 15 nF @ 10 V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Chassis Mount | |
| Package / Case | Module | |
| Supplier Device Package | Module |

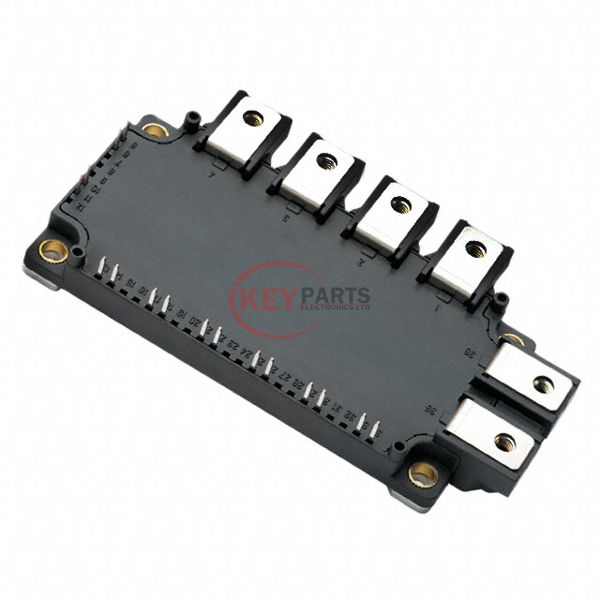

We can supply CM150RX-24S, use the request quote form to request CM150RX-24S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CM150RX-24S. The price and lead time for CM150RX-24S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CM150RX-24S. We look forward to working with you to establish long-term relations of cooperation.
