MG12150D-BA1MM

Enlarger

Lmages are for reference only See Product Specitications

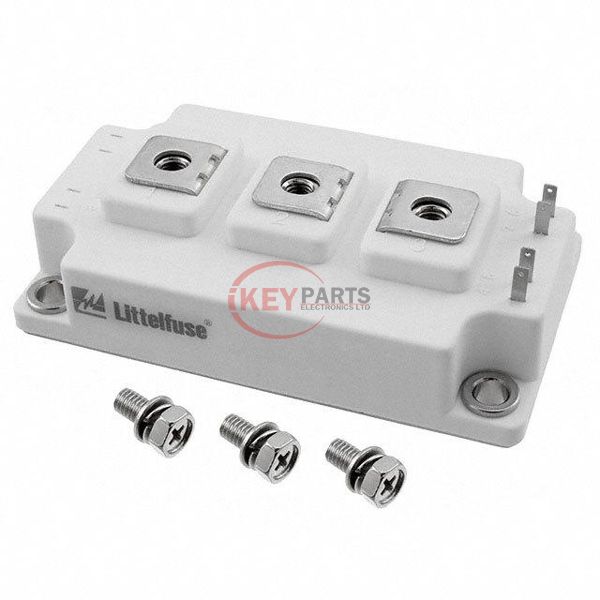

Wickmann / Littelfuse MG12150D-BA1MM

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
MG12150D-BA1MM
Description
IGBT MODULE 1200V 210A 1100W D3
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MG12150D-BA1MM PDF
In Stock
374
MG12150D-BA1MM Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)210 A
Power - Max1100 W
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 150A (Typ)
Current - Collector Cutoff (Max)1 mA
Input Capacitance (Cies) @ Vce11 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageD3
Request Quote Now
Request Quote Now

We can supply MG12150D-BA1MM, use the request quote form to request MG12150D-BA1MM pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MG12150D-BA1MM. The price and lead time for MG12150D-BA1MM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MG12150D-BA1MM. We look forward to working with you to establish long-term relations of cooperation.
