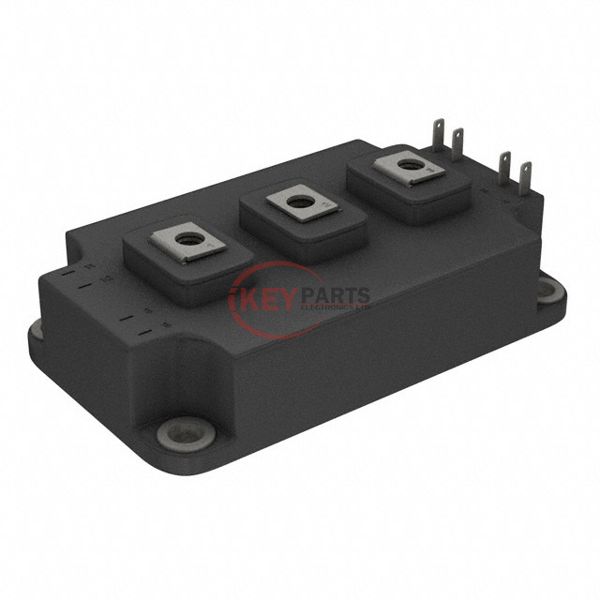

GA400TD25S

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division GA400TD25S

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
GA400TD25S
Description
IGBT MOD 250V 400A INT-A-PAK
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
GA400TD25S PDF
GA400TD25S Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT Type-
ConfigurationHalf Bridge
Voltage - Collector Emitter Breakdown (Max)250 V
Current - Collector (Ic) (Max)400 A
Power - Max1350 W
Vce(on) (Max) @ Vge, Ic1.6V @ 15V, 400A
Current - Collector Cutoff (Max)500 µA
Input Capacitance (Cies) @ Vce36 nF @ 30 V
InputStandard
NTC ThermistorNo
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseDual INT-A-PAK (3 + 8)
Supplier Device PackageDual INT-A-PAK
Request Quote Now
Request Quote Now

We can supply GA400TD25S, use the request quote form to request GA400TD25S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number GA400TD25S. The price and lead time for GA400TD25S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# GA400TD25S. We look forward to working with you to establish long-term relations of cooperation.
