APT15GF120JCU2

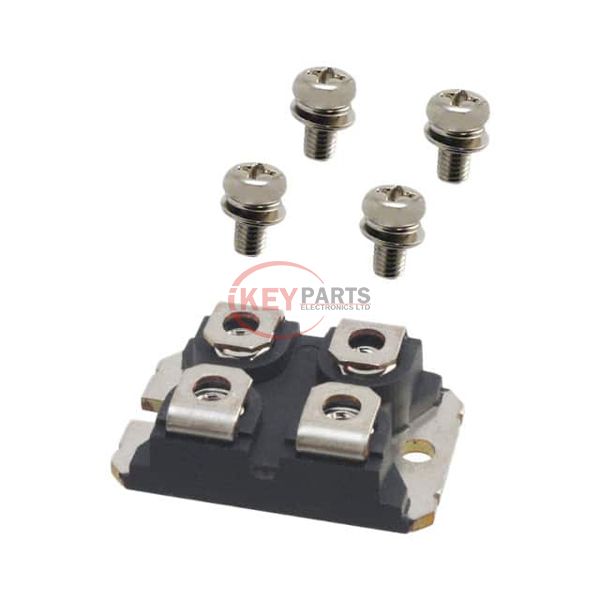

Enlarger

Lmages are for reference only See Product Specitications

Microsemi APT15GF120JCU2

Manufacturer :
Microsemi
Mfr. Part # :
APT15GF120JCU2
Description
IGBT MOD 1200V 30A 156W SOT227
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT15GF120JCU2 PDF
In Stock
709
APT15GF120JCU2 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
IGBT TypeNPT
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)30 A
Power - Max156 W
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 15A
Current - Collector Cutoff (Max)250 µA
Input Capacitance (Cies) @ Vce1 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-
Mounting TypeChassis, Stud Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227
Request Quote Now
Request Quote Now

We can supply APT15GF120JCU2, use the request quote form to request APT15GF120JCU2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT15GF120JCU2. The price and lead time for APT15GF120JCU2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT15GF120JCU2. We look forward to working with you to establish long-term relations of cooperation.
