IRG4BC20KD-S

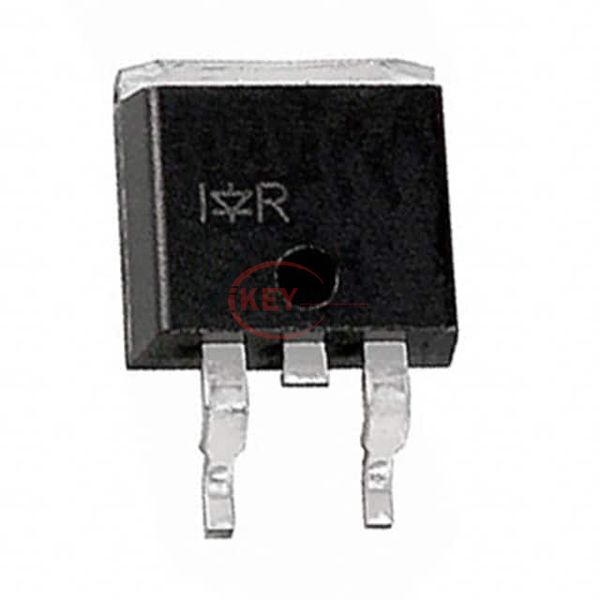

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRG4BC20KD-S

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRG4BC20KD-S
Description
IGBT 600V 16A 60W D2PAK
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRG4BC20KD-S PDF
In Stock
508
IRG4BC20KD-S Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)16 A
Current - Collector Pulsed (Icm)32 A
Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 9A
Power - Max60 W
Switching Energy340µJ (on), 300µJ (off)
Input TypeStandard
Gate Charge34 nC
Td (on/off) @ 25°C54ns/180ns
Test Condition480V, 9A, 50Ohm, 15V
Reverse Recovery Time (trr)37 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageD2PAK
Request Quote Now
Request Quote Now

We can supply IRG4BC20KD-S, use the request quote form to request IRG4BC20KD-S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG4BC20KD-S. The price and lead time for IRG4BC20KD-S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRG4BC20KD-S. We look forward to working with you to establish long-term relations of cooperation.
