IRG4BC30U

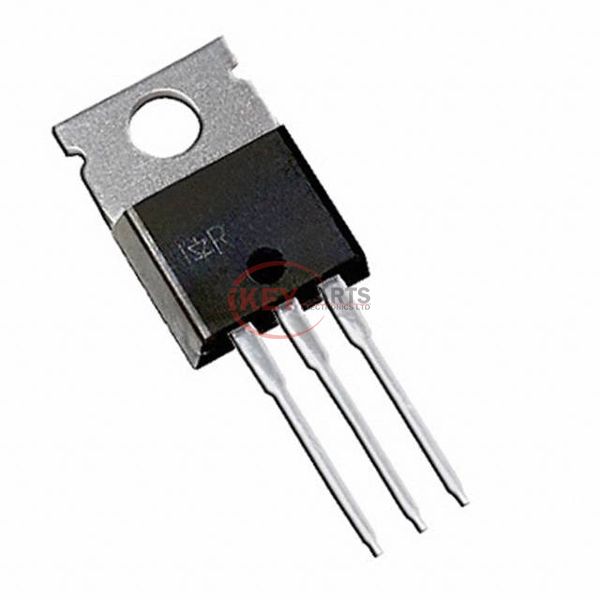

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRG4BC30U

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRG4BC30U
Description
IGBT 600V 23A 100W TO220AB
Catalog
Transistors - IGBTs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRG4BC30U PDF
In Stock
722
IRG4BC30U Tech Specifications
Series-
PackageTube
Part StatusObsolete
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)23 A
Current - Collector Pulsed (Icm)92 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 12A
Power - Max100 W
Switching Energy160µJ (on), 200µJ (off)
Input TypeStandard
Gate Charge50 nC
Td (on/off) @ 25°C17ns/78ns
Test Condition480V, 12A, 23Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220AB
Request Quote Now
Request Quote Now

We can supply IRG4BC30U, use the request quote form to request IRG4BC30U pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRG4BC30U. The price and lead time for IRG4BC30U depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRG4BC30U. We look forward to working with you to establish long-term relations of cooperation.
