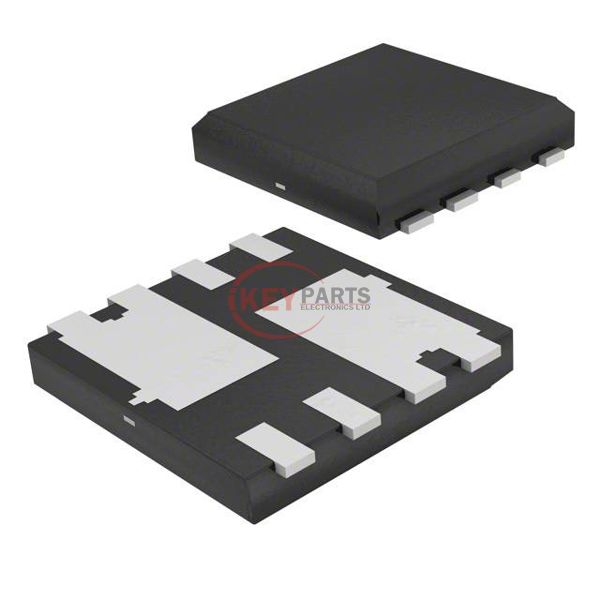

AON7804_101

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON7804_101

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON7804_101
Description
MOSFET
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON7804_101 PDF
In Stock
426
AON7804_101 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C9A (Ta), 22A (Tc)
Rds On (Max) @ Id, Vgs21mOhm @ 8A, 10V
Vgs(th) (Max) @ Id2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds888pF @ 15V
Power - Max3.1W (Ta), 17W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerSMD, Flat Leads
Supplier Device Package8-DFN (3x3)
Request Quote Now
Request Quote Now

We can supply AON7804_101, use the request quote form to request AON7804_101 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON7804_101. The price and lead time for AON7804_101 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON7804_101. We look forward to working with you to establish long-term relations of cooperation.
