AON2809

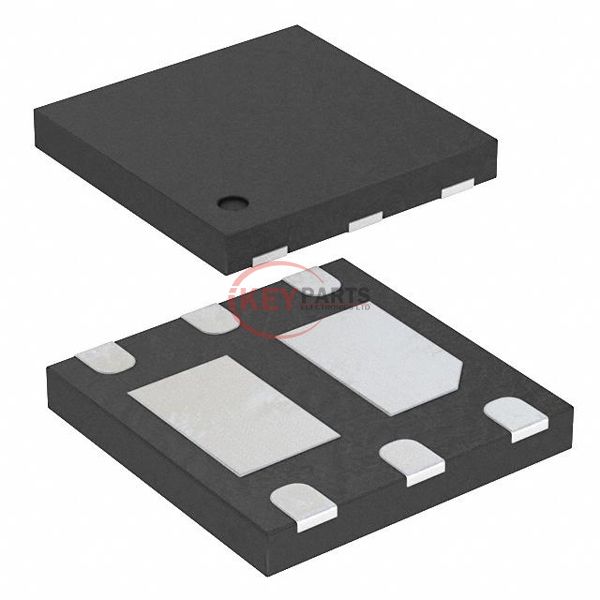

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON2809

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON2809
Description
MOSFET 2P-CH 12V 2A 6DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON2809 PDF
In Stock
428
AON2809 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)12V
Current - Continuous Drain (Id) @ 25°C2A
Rds On (Max) @ Id, Vgs68mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds415pF @ 6V
Power - Max2.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-DFN-EP (2x2)
Request Quote Now
Request Quote Now

We can supply AON2809, use the request quote form to request AON2809 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON2809. The price and lead time for AON2809 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON2809. We look forward to working with you to establish long-term relations of cooperation.
