CSD75205W1015

Enlarger

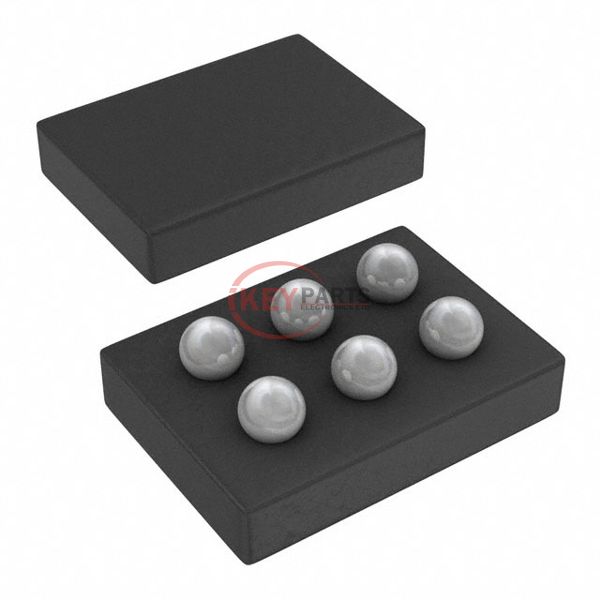

Lmages are for reference only See Product Specitications

Texas Instruments CSD75205W1015

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD75205W1015
Description
MOSFET 2P-CH 20V 1.2A 6DSBGA
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD75205W1015 PDF
In Stock
921
CSD75205W1015 Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C1.2A
Rds On (Max) @ Id, Vgs120mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id850mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds265pF @ 10V
Power - Max750mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-UFBGA, DSBGA
Supplier Device Package6-DSBGA (1x1.5)
Request Quote Now
Request Quote Now

We can supply CSD75205W1015, use the request quote form to request CSD75205W1015 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD75205W1015. The price and lead time for CSD75205W1015 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD75205W1015. We look forward to working with you to establish long-term relations of cooperation.
