STL75N3LLZH5

Enlarger

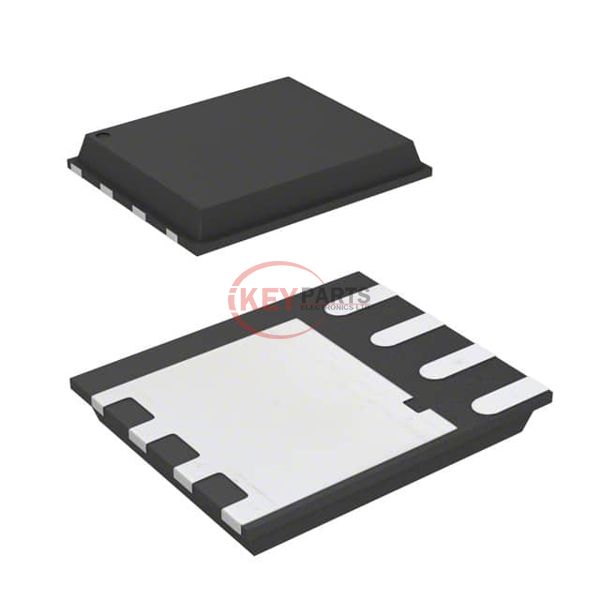

Lmages are for reference only See Product Specitications

STMicroelectronics STL75N3LLZH5

Manufacturer :
STMicroelectronics
Mfr. Part # :
STL75N3LLZH5
Description
MOSFET N-CH 30V 75A POWERFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STL75N3LLZH5 PDF
In Stock
942
STL75N3LLZH5 Tech Specifications
SeriesSTripFET™ V
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6.1mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11.8 nC @ 4.5 V
Vgs (Max)±18V
Input Capacitance (Ciss) (Max) @ Vds1510 pF @ 25 V
FET Feature-
Power Dissipation (Max)60W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply STL75N3LLZH5, use the request quote form to request STL75N3LLZH5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STL75N3LLZH5. The price and lead time for STL75N3LLZH5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STL75N3LLZH5. We look forward to working with you to establish long-term relations of cooperation.
