SPD100N03S2L04T

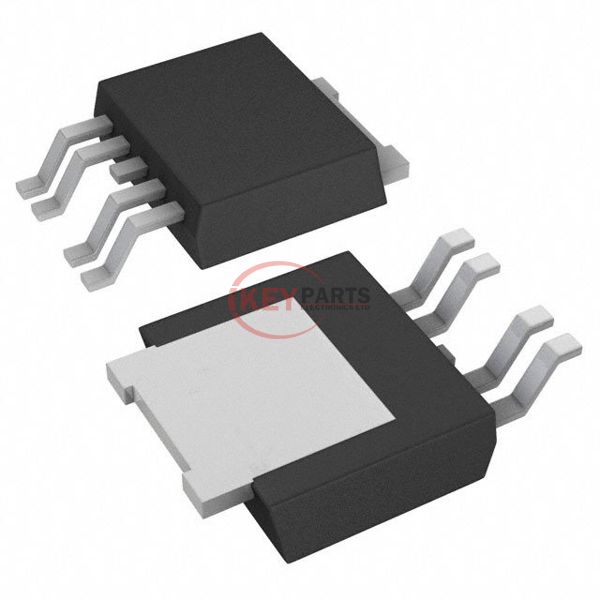

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) SPD100N03S2L04T

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
SPD100N03S2L04T
Description
MOSFET N-CH 30V 100A TO252-5
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SPD100N03S2L04T PDF
In Stock
531
SPD100N03S2L04T Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)
Part StatusDiscontinued at Digi-Key
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.2mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2V @ 100µA
Gate Charge (Qg) (Max) @ Vgs89.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3320 pF @ 25 V
FET Feature-
Power Dissipation (Max)150W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-5
Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD
Request Quote Now
Request Quote Now

We can supply SPD100N03S2L04T, use the request quote form to request SPD100N03S2L04T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SPD100N03S2L04T. The price and lead time for SPD100N03S2L04T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SPD100N03S2L04T. We look forward to working with you to establish long-term relations of cooperation.
