HAT2140H-EL-E

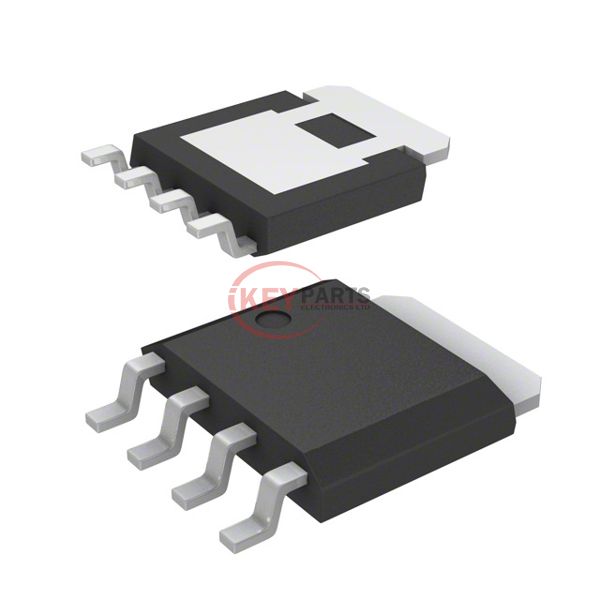

Enlarger

Lmages are for reference only See Product Specitications

Renesas Electronics America HAT2140H-EL-E

Manufacturer :
Renesas Electronics America
Mfr. Part # :
HAT2140H-EL-E
Description
MOSFET N-CH 100V 25A LFPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HAT2140H-EL-E PDF
In Stock
330
HAT2140H-EL-E Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Rds On (Max) @ Id, Vgs16mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs105 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6500 pF @ 10 V
FET Feature-
Power Dissipation (Max)30W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK
Package / CaseSC-100, SOT-669
Request Quote Now
Request Quote Now

We can supply HAT2140H-EL-E, use the request quote form to request HAT2140H-EL-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HAT2140H-EL-E. The price and lead time for HAT2140H-EL-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HAT2140H-EL-E. We look forward to working with you to establish long-term relations of cooperation.
