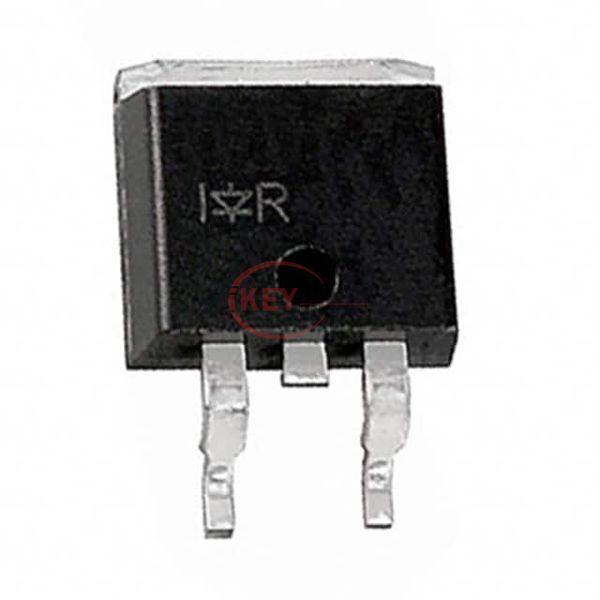

IRFS23N15D

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRFS23N15D

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRFS23N15D
Description
MOSFET N-CH 150V 23A D2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRFS23N15D PDF
In Stock
649
IRFS23N15D Tech Specifications
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C23A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs90mOhm @ 14A, 10V
Vgs(th) (Max) @ Id5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs56 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1200 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 136W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply IRFS23N15D, use the request quote form to request IRFS23N15D pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRFS23N15D. The price and lead time for IRFS23N15D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRFS23N15D. We look forward to working with you to establish long-term relations of cooperation.
