AOC2401

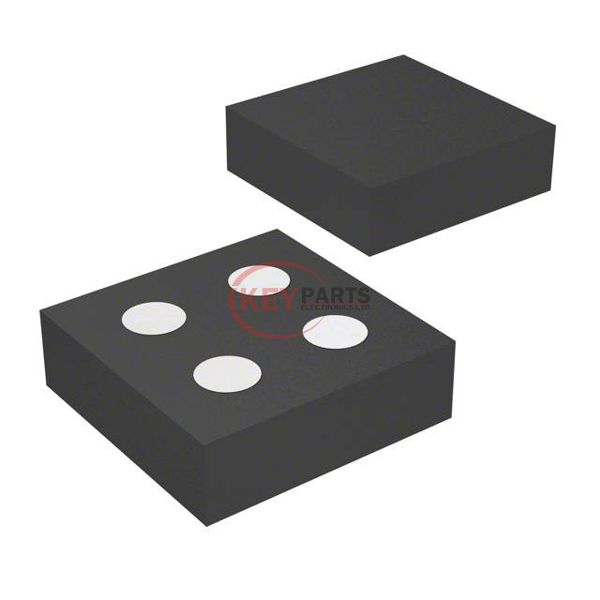

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AOC2401

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AOC2401
Description
MOSFET P-CH 30V 3A 4ALPHADFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AOC2401 PDF
AOC2401 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 10V
Rds On (Max) @ Id, Vgs41mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1327 pF @ 15 V
FET Feature-
Power Dissipation (Max)550mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-AlphaDFN (1.57x1.57)
Package / Case4-SMD, No Lead
Request Quote Now
Request Quote Now

We can supply AOC2401, use the request quote form to request AOC2401 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AOC2401. The price and lead time for AOC2401 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AOC2401. We look forward to working with you to establish long-term relations of cooperation.
