APT18M80S

Enlarger

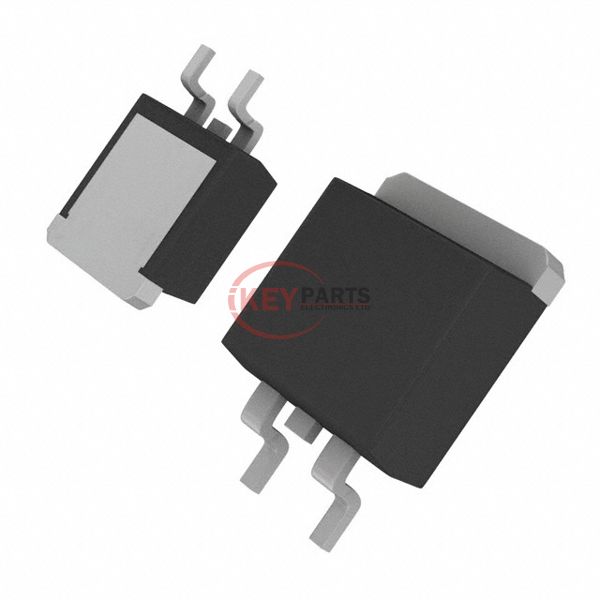

Lmages are for reference only See Product Specitications

Microsemi APT18M80S

Manufacturer :
Microsemi
Mfr. Part # :
APT18M80S
Description
MOSFET N-CH 800V 19A D3PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT18M80S PDF
In Stock
236
APT18M80S Tech Specifications
SeriesPOWER MOS 8™
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs530mOhm @ 9A, 10V
Vgs(th) (Max) @ Id5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs120 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds3760 pF @ 25 V
FET Feature-
Power Dissipation (Max)500W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD3Pak
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply APT18M80S, use the request quote form to request APT18M80S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT18M80S. The price and lead time for APT18M80S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT18M80S. We look forward to working with you to establish long-term relations of cooperation.
