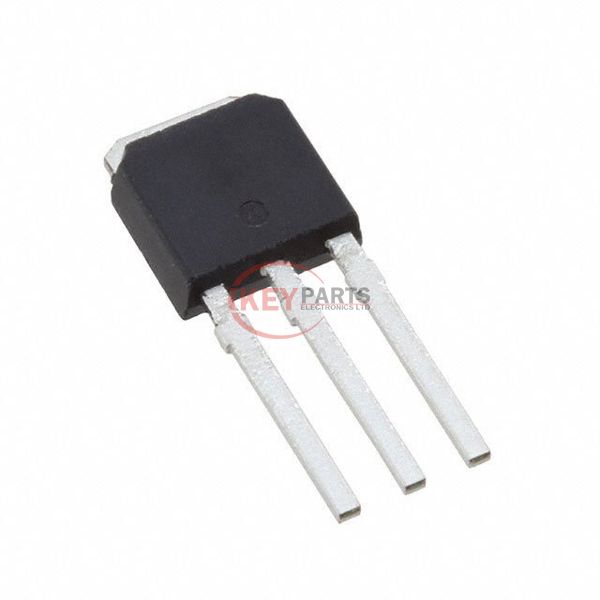

IRLU3705Z

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRLU3705Z

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRLU3705Z
Description
MOSFET N-CH 55V 42A I-PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLU3705Z PDF
In Stock
414
IRLU3705Z Tech Specifications
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs8mOhm @ 42A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs66 nC @ 5 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds2900 pF @ 25 V
FET Feature-
Power Dissipation (Max)130W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
Request Quote Now
Request Quote Now

We can supply IRLU3705Z, use the request quote form to request IRLU3705Z pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLU3705Z. The price and lead time for IRLU3705Z depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLU3705Z. We look forward to working with you to establish long-term relations of cooperation.
