TPCF8B01(TE85L,F,M

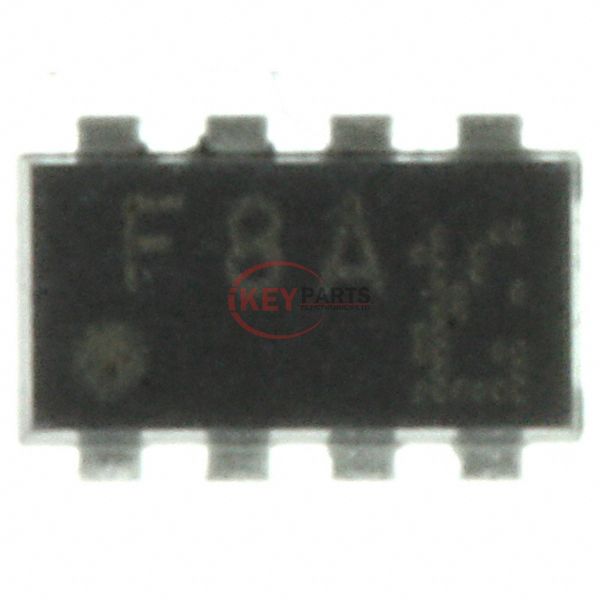

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TPCF8B01(TE85L,F,M

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TPCF8B01(TE85L,F,M
Description
MOSFET P-CH 20V 2.7A VS-8
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPCF8B01(TE85L,F,M PDF
In Stock
451
TPCF8B01(TE85L,F,M Tech Specifications
SeriesU-MOSIII
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs110mOhm @ 1.4A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 200µA
Gate Charge (Qg) (Max) @ Vgs6 nC @ 5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds470 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)330mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageVS-8 (2.9x1.5)
Package / Case8-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply TPCF8B01(TE85L,F,M, use the request quote form to request TPCF8B01(TE85L,F,M pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPCF8B01(TE85L,F,M. The price and lead time for TPCF8B01(TE85L,F,M depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPCF8B01(TE85L,F,M. We look forward to working with you to establish long-term relations of cooperation.
