IRLML5203

Enlarger

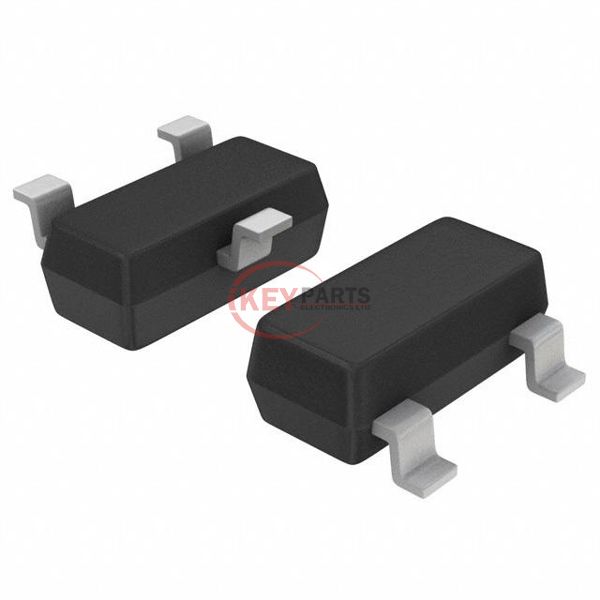

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRLML5203

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRLML5203
Description
MOSFET P-CH 30V 3A MICRO3/SOT23
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLML5203 PDF
In Stock
574
IRLML5203 Tech Specifications
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs98mOhm @ 3A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds510 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.25W (Ta)
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device PackageMicro3™/SOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply IRLML5203, use the request quote form to request IRLML5203 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLML5203. The price and lead time for IRLML5203 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLML5203. We look forward to working with you to establish long-term relations of cooperation.
